K Lox Proofer

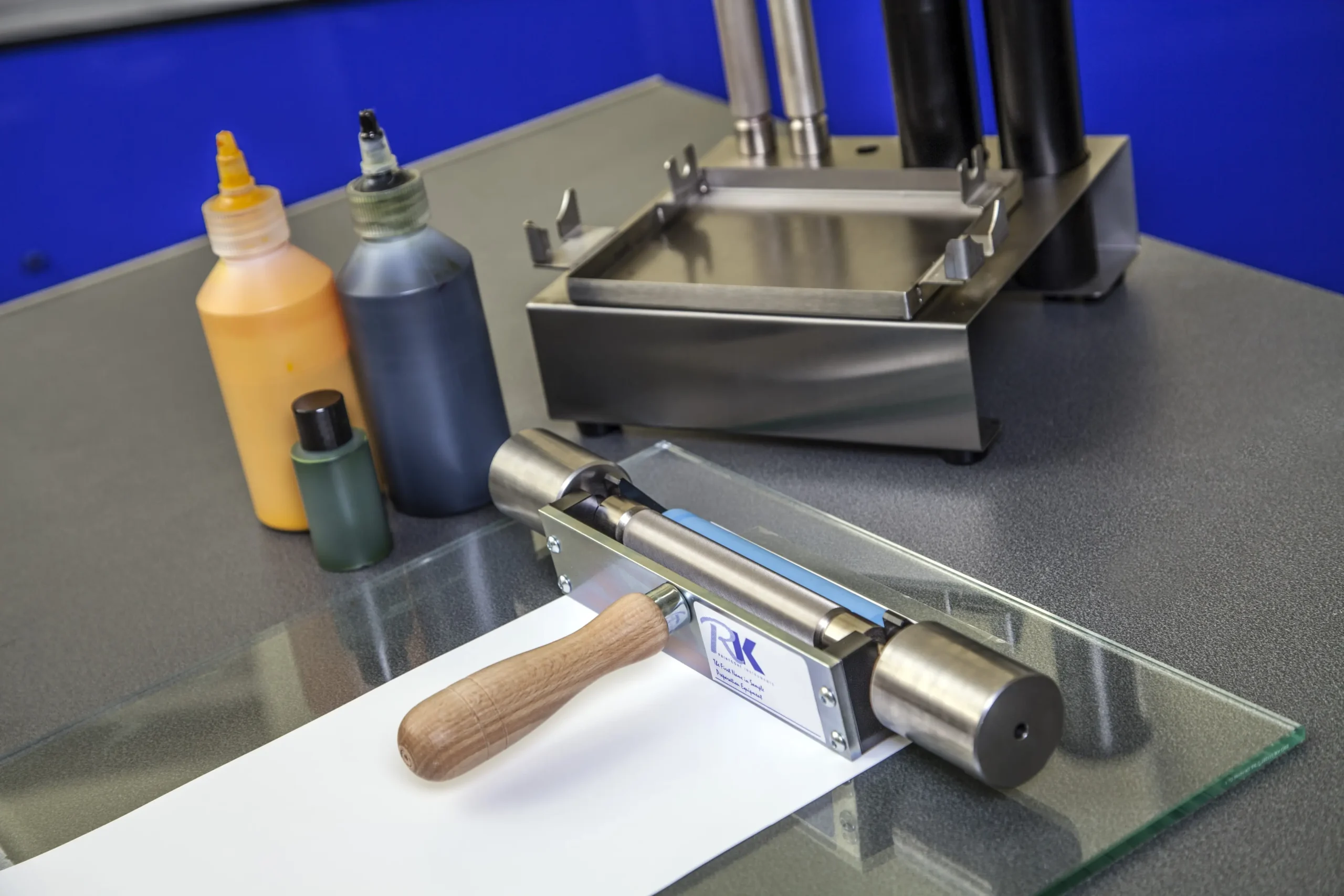

A bead of ink is placed between an engraved anilox roller and a rubber roller as illustrated below. It is essential to have constant pressure between the rollers for consistent prints and this is ensured by two weights. When the K Lox is drawn smoothly over the substrate an accurate film of ink is printed producing a sample up to 4.5” (115mm) wide. After removing the weights, both rollers are easily cleaned. Anilox rollers with screens for solid, line and half-tone printing may be selected as required.

Category:

Technical Specification

HAND K LOX

The Hand K Lox provides a cost effective and simple means of proofing flexo inks. It is available in options:

K Lox Starter Set (KLOX.01.S) includes:

  • Frame, handle and weights
  • K Lox rubber roller EPDM 50 shore
  • K Lox roller engraved standard size: 200 lpi 10.2cm³/m² TR 12

K Lox Complete Set (KLOX.01.S) includes:

  • Frame, handle and weights
  • Cleaning/storage rack
  • 5 Spare ‘O’ rings
  • 2 K Lox rubber rollers
  • 3 K Lox rollers engraved standard sizes:

    -140 lpi 20.2 cm³/m² TR 10

    -180 lpi 16.6 cm³/m² TR 14

    -200 lpi 10.2 cm³/m² TR 12
