Technical Specification

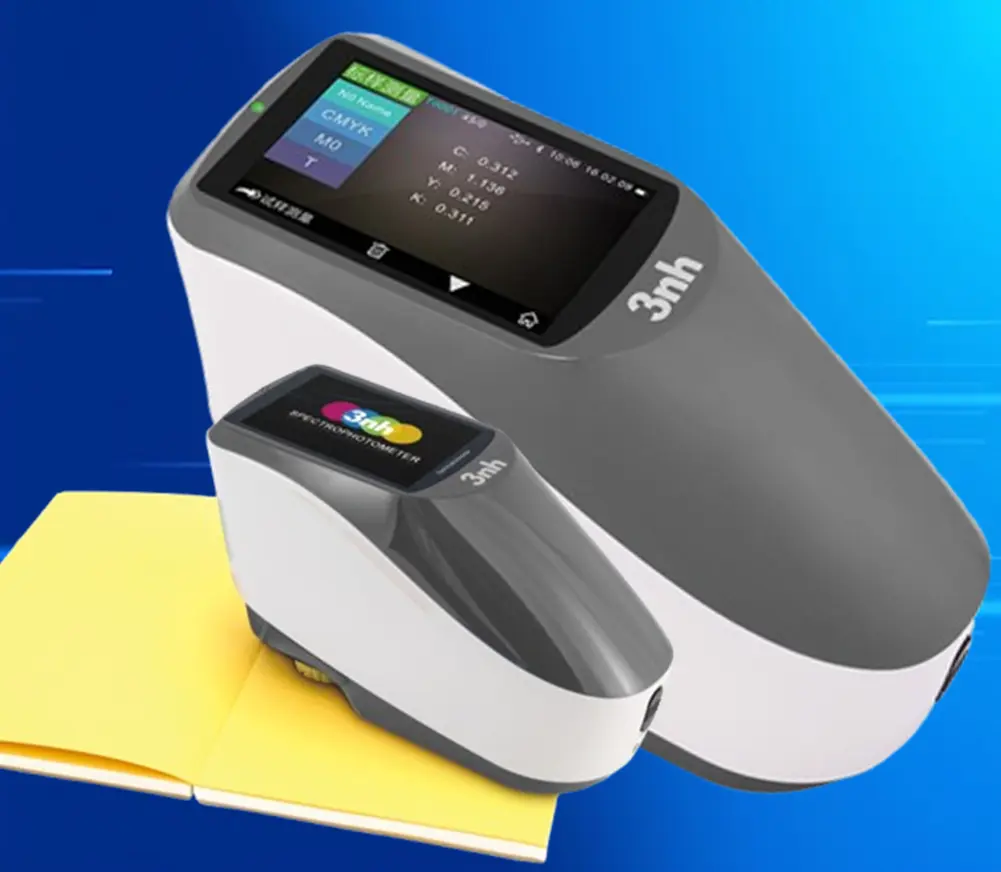

Model: YD5010
Features: Common spectrophotometer densitometer, apply in ink printing, in Film Processing, Textile Printing and Dyeing, Plastic Electronics and Other Industries for Color Measurement and Quality Control; especially suitable for the measurement and quality control of optical density and dot enlargement in ink printing; able to customize single aperture Φ2mm,Φ4mm,Φ8mm.
Light Source: Combined LED Light, UV Light
Detector: 256 Image Element Double Array CMOS Image Sensor
Wavelength Range: 400~700nm
Measurement Conditions: Compliance with ISO 13655 measurement conditions; M0 (CIE Light Soure A), M1 (CIE Light Soure D50), M2 (Excluding UV light source), M3 (M2+Polarized light filter)
Measurement aperture: Customized one aperture：Φ2mm,Φ4mm,Φ8mm optional
Color Spaces: CIE LAB, XYZ, Yxy, LCh
Color Difference Formula: ΔE*ab, ΔE*94, ΔE*00
Illuminants: A, C, D50, D55, D65, D75, F2, F7, F11, F12
Measurement Time: About 1.5s
Size(L*W*H): 184*77*105mm
Weight: About 600g
Power source: Li-ion battery. 5000 measurements within 8 hours
Illuminant Life Span: 5 years, more than 3 million times measurements
Display: 3.5-inch TFT color LCD, Capacitive Touch Screen
Data memory: 10000 pcs
Working Environment: Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m
Storage Environment: Temperature: -20~50℃; Humidity: 0~85% (No Condensation)）
